If a hundreds-of-meters-tall skyscraper is compared to the human body, the electrical shaft is its spine, and the busway is the 'main artery' that continuously delivers power. In building spaces spanning hundreds of thousands of square meters, choosing the right 'power artery' directly determines power supply safety, long-term maintenance costs, and even space utilization in electrical shafts.

1. Structural Showdown: 'Sandwich' vs. 'Breathing Duct'

1.1 Compact Busway: The 'Sandwich' Maximizing Space Efficiency

· Design Principle: Copper or aluminum busbars are tightly stacked without air gaps, separated only by thin, high-performance insulating materials (such as PET film or epoxy resin) and wrapped securely in a rigid housing.

· Compact Footprint: Due to the elimination of air gaps, taking a 3000A busway as an example, the cross-sectional dimensions of a compact type are reduced by 40% to 50% compared to an air-insulated type.

· Shaft Space Savings: In a 50-story supertall building, using compact busway can save approximately 0.5 to 1.0 m² of valuable shaft area per floor, delivering significant commercial space benefits.

1.2 Air-Insulated Busway: The 'Breathing Duct' with Air Gaps

· Design Principle: Air gaps ranging from 10mm to 30mm are maintained between conductors, relying on air as the natural insulating medium, fixed by high-strength ceramic or resin spacers.

· Larger Dimensions: Because safe air clearances must be maintained, the outer housing is significantly larger, requiring deeper and wider electrical shafts.

2. Performance Comparison: Temperature Rise, Current Capacity & Proximity Effect

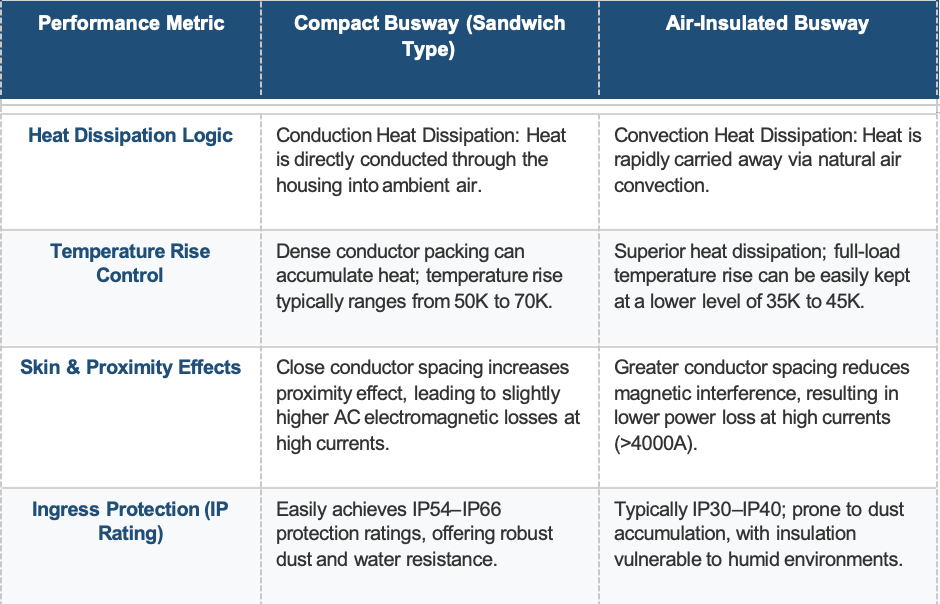

Industrial equipment must not only fit into available space but also withstand long-term full-load operation. Below is a comprehensive key performance metrics comparison:
