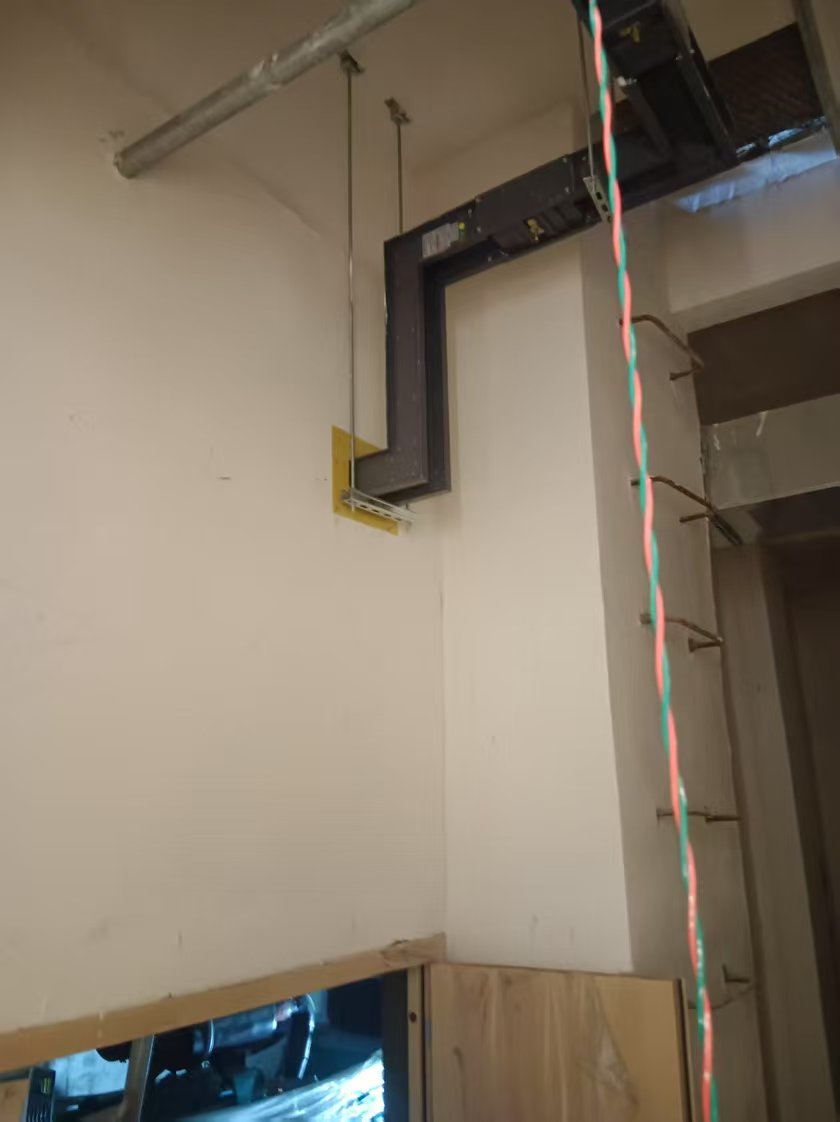

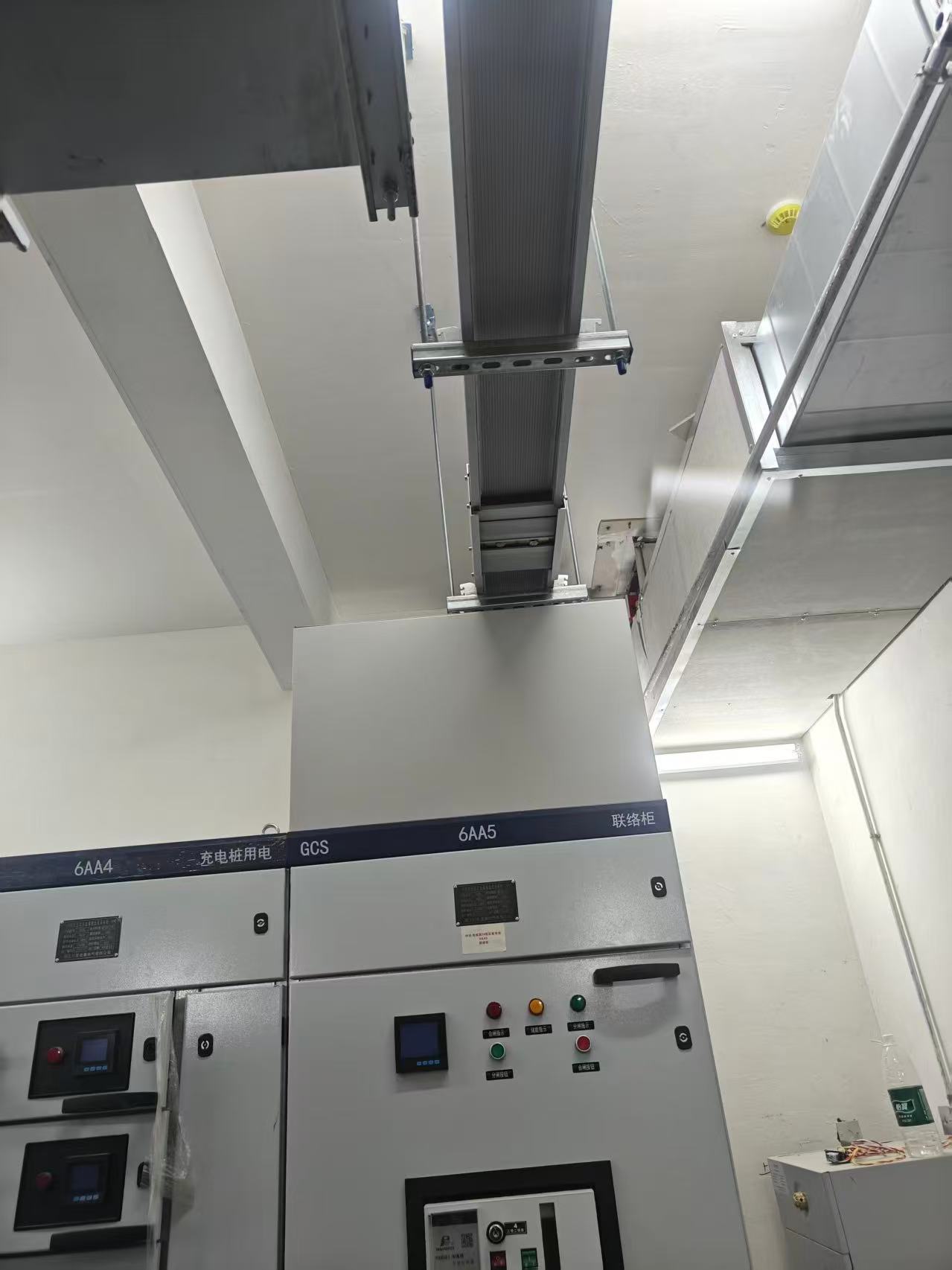

Case Study: Optimizing Space and Power Efficiency in High-Density Electrical Rooms & Vertical Shafts

    In modern commercial complexes, residential high-rises, and underground infrastructure, electrical rooms (switchgear rooms) and generator rooms are often heavily space-constrained. Traditional cabling systems present significant drawbacks in these environments: they are bulky, require large bending radii, occupy excessive space in vertical shafts, and demand complex, time-consuming installation. Managing high current loads within such confined areas becomes a logistical and safety bottleneck.

   To solve this, our Compact Sandwich Busbar Trunking System (400A - 1600A) offers a highly engineered alternative to traditional cables. Featuring a deeply integrated and compact sandwich structure, this busbar system eliminates internal air gaps, drastically reducing its overall physical footprint.

   Compared to power cables, our busway provides superior neatness, standardizes power distribution pathways, and allows for flexible, multi-directional routing in tight corners. It delivers a significantly higher current-carrying capacity while occupying only a fraction of the space required by equivalent cable trays.

* Maximum Space Utilization: Saves up to 50% of the installation space in vertical service shafts and low-voltage distribution rooms.

   * Unmatched Flexibility: Plug-and-play tap-off units allow for easy system reconfigurations and future power expansions without messy rewiring.

   * Streamlined Installation: The rigid, modular design ensures a safer, neater, and faster installation process compared to laying heavy, unmanageable cables.
